Change Engine Oil and Filter (Single Bowl Cartridge Filter- If Equipped)

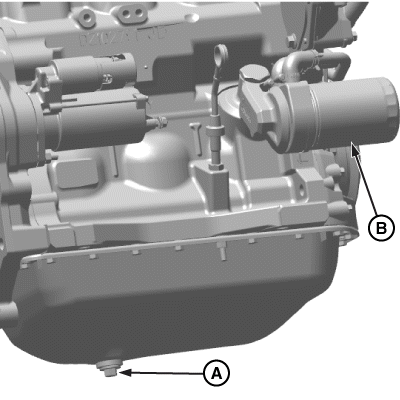

APY92984
APY92984-UN-08MAR24

A - Engine Oil Drain Plug

B - Engine Oil Filter

NOTE: Change oil and filter at 500 hours or half yearly, whichever occurs first.

  1. Run engine to heat oil.

  2. NOTE: The approximate engine crankcase oil capacity is 8.5 L.

    Remove oil drain plug (A) and drain oil.

  3. Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

  4. Install drain plug.

  5. Add seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)

    ItemMeasurementSpecification
    Engine Crankcase OilCapacity8.5 L
