Drain Water and Sediment from Fuel Filter (Single Bowl Cartridge Fuel Filter- If Equipped)

Service Interval - Every 50 hours

1. NOTE: Place a small container under the drain fitting to catch draining fuel. Dispose of the waste properly.

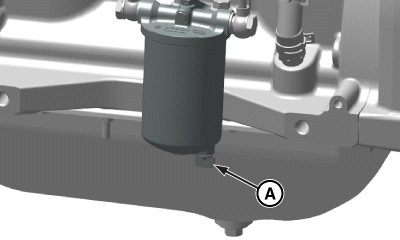

   APY92983-UN-08MAR24

   If Equipped

   A - Fuel Filter Drain Plug

   Put range-shift lever in neutral, set brakes and turn engine OFF.

---




2. Place a suitable container under the fuel filter drain plug (A).

3. Loosen the fuel filter drain plug (A) by 1/2 to 3/4 rotation till the fuel starts draining.

4. Tighten fuel filter drain plug (A) when fuel runs clear.

   IMPORTANT: Avoid damage to fuel pump. Always clean fuel filter before removing or installing on engine. Dirt can damage fuel system components.
