Check and Adjust Clutch Pedal Free Play

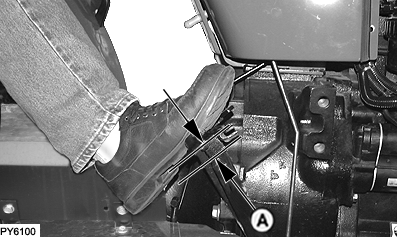

PY6100-UN-06AUG06

Clutch Pedal Free Play

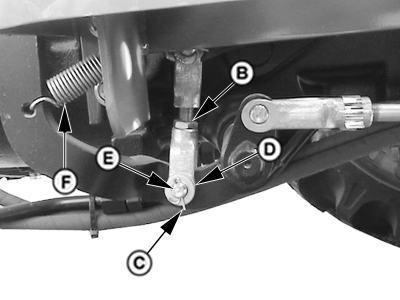

PY4976-UN-18JUN07

A - Clutch Pedal Free Play

B - Lock Nut

C - Cotter Pin

D - Washer

E - Retaining Pin

F - Return Spring

Measure free play (A) at top of pedal stroke. Adjust linkage to obtain 20 to 25 mm free play.

To adjust linkage, loosen lock nut (B), remove cotter pin (C), washer (D) and retaining pin (E) and return spring (F). Rotate clevis. After making adjustment, replace clip, pin and washer and check free play. When free play is correct, tighten lock nut.
