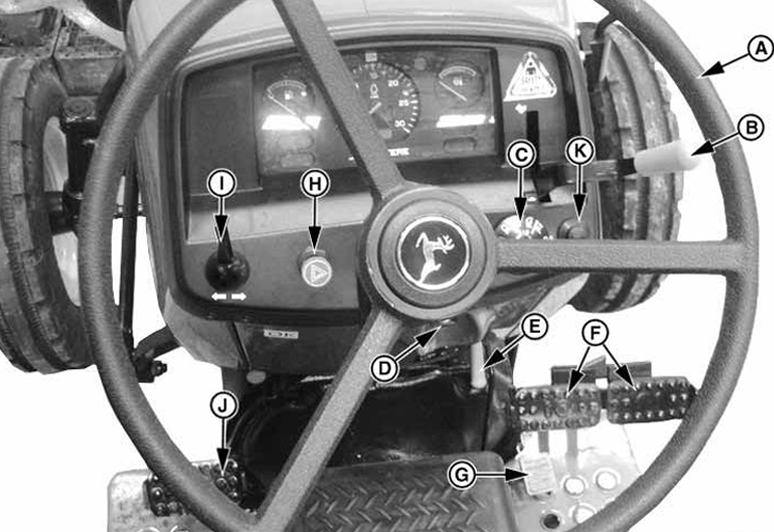

Tractor Controls

PY13076-UN-16DEC11
A - Steering Wheel
B - Hand Throttle
C - Light Switch
D - Key Switch
E - Park Brake Lever
F - Brake Pedals
G - Foot Throttle
H - Hazard Switch
I - Turn Signal Switch
J - Clutch Pedal
K - Horn Switch

PY6080-UN-06AUG06

PY13077-UN-16DEC11

PY4947-UN-19MAY05

PY6081-UN-06AUG06

PY13075-UN-16DEC11

PY8003-UN-17MAR08
Rockshaft

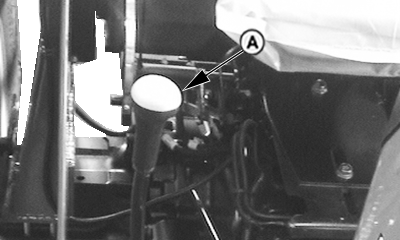

A - Gear Shift Lever

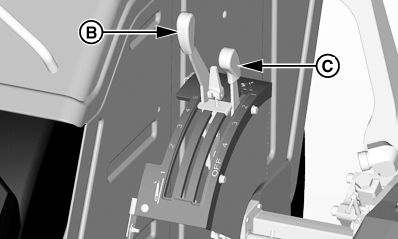

B - Rockshaft Position Control Lever
C - Rockshaft Draft Control Lever

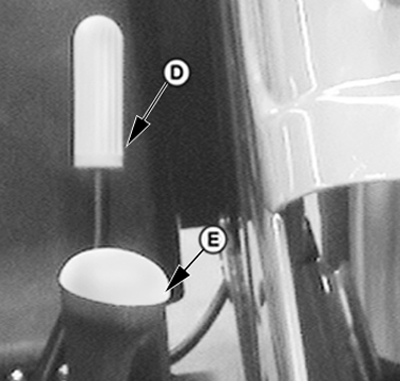

D - PTO Lever
E - Range Shift Lever
F - Differential Lock
G - SCV I Control Lever

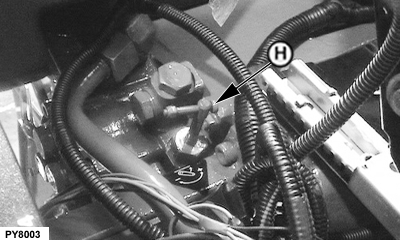

H - Rate of Drop of Knob
|
|
AH98466,0001081-19-20111216
|
|
