Inspect and Adjust Alternator/Fan Belt

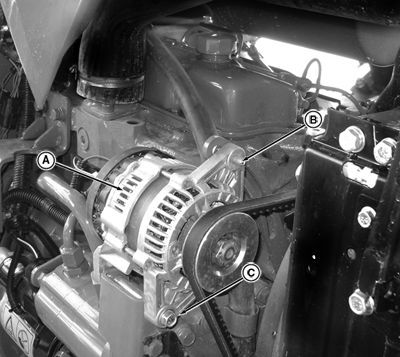

PY12201-UN-02JUN11

A - Alternator Frame

B - Tension Adjustment Cap Screw

C - Alternator Mounting Bolts

Replace if worn or damaged. (See procedure in Service section.)

NOTE: Run engine for five minutes to warm a cold belt. Let a hot belt cool for 15 minutes before adjustment.

Check tension by pressing belt midway between pulleys. Belt should deflect about 19 mm (3/4 in.) at 89 N (20 lb force).

Adjust tension by loosening cap screw (A) and mounting bolt (B). Apply force to alternator frame (C) until belt tension is correct. Tighten cap screw and bolt.
