Use Turn Signals

PY12205-UN-06JUN11

PY5008-UN-09JUN06

A - Turn Signal Lever

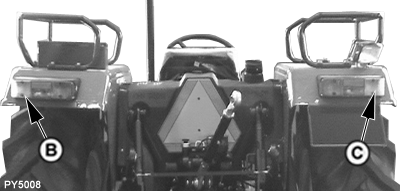

B - Left-Hand Lights

C - Right-Hand Lights

Move turn signal lever towards left to indicate left-hand turn and towards right for right-hand turn. Indicator lights will flash to signal turn direction in cluster meter

When lever is in right front and rear facing lights on right-hand side (C) will flash while left-hand lights (B) glow steady. Left-hand lights (B) flash and right-hand lights (C) glow steady when lever is in left.

NOTE: Be sure to manually return lever to center position after turning.
