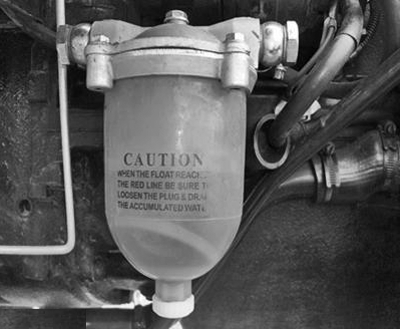

Check Water Separator Trap

After 650 hours of operation, check the visibility of the water separator trap in every service interval of 250 hours.

If the trap turns yellow/brown, open the trap and clean it with compressed water. If the yellow/brown color still persists, replace the trap.

PY12206-UN-07JUN11

NOTE: Every time when the trap is opened for cleaning replace with the new ‘O’ ring.

NOTE: Replace the water separator after 2000 hours of operation.
