Driving Tractor on Roads

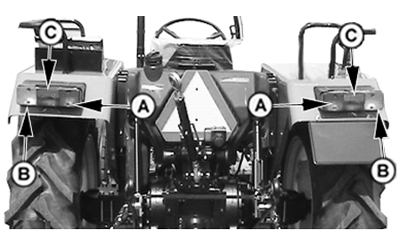

PY9954-UN-25AUG10

A - Tail light

B - Turning Lights

C - Reflex Reflector

CAUTION: Observe the following precautions when operating on a road.

1. Before operating tractor on highway be sure tail lights (A) and flashing turning lights (B) work properly. Install and use auxiliary lighting to equipment as required for safety and by local regulations.

2. CAUTION: NEVER operate flood lampwhen transporting tractor. Clear bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

   IMPORTANT: Refer to Lights section for detailed descriptions of lighting operations and functions.


   PY4029-UN-06JUN06

   A - Lights OFF

   B - Warning Light Position

   C - Dim Headlights

   D - Bright Headlights

   E - High Beamlight

   Turn light switch to high beam headlights or low beam headlights position. Never use bright lights which are visible from the rear. Always dim headlights before meeting another vehicle. Keep headlights properly adjusted.

---




3.
   PY12207-UN-08JUN11

   A - Turn Signal Lever

   Use turn signals when turning. Be sure to return turn signal lever (A) to center position after turning.

---




4.

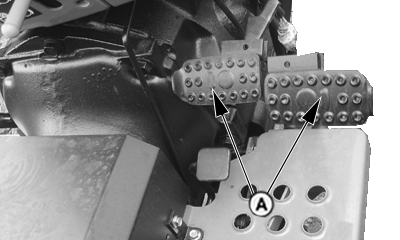

   PY6098-UN-06AUG06

   Brake Pedals

   A - Brake Pedals

   Couple brake pedals (A) together before driving on a road. Avoid hard applications of brakes.

---




5. Drive slowly enough to maintain safe control at all times. Slow down for hillsides, rough ground, and sharp turns, especially when transporting heavy, rear-mounted equipment.

6. Before going down a hill, shift to a gear low enough to control speed without using brakes. Never coast down hill.

7. When transporting downhill on icy or graveled grades, be alert for skids which could result in loss of steering control. To decrease chance of skids, reduce speed and be sure tractor has proper ballast.

8. CAUTION:

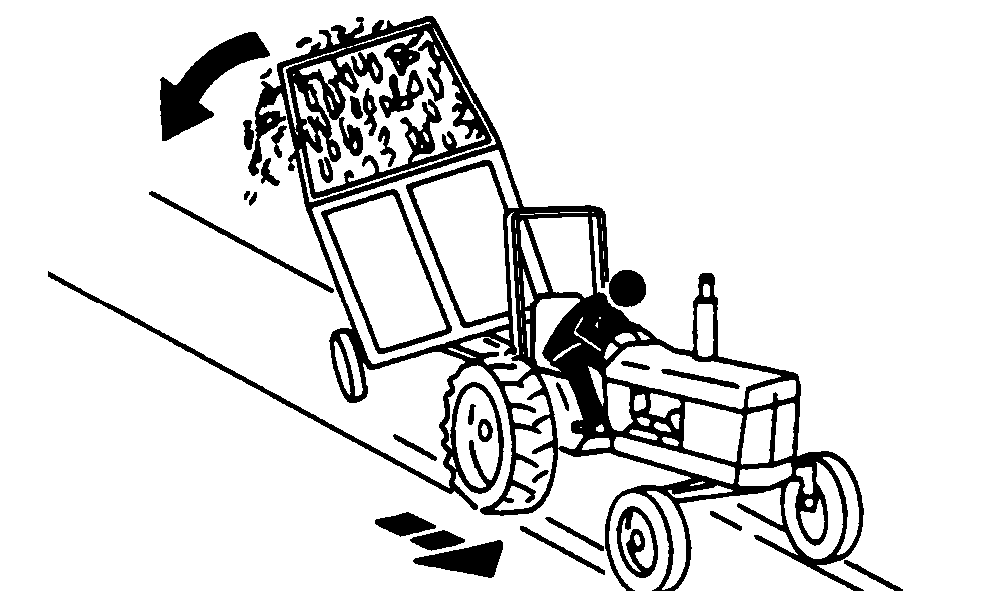

   LV4042-UN-09JUL99

   Stopping distance increases with speed and weight of towed loads, and on slopes. Towed loads with or without brakes that are too heavy for the tractor or are towed too fast can cause loss of control. Consider the total weight of the equipment and its load.

   Observe these recommended maximum road speeds, or local speed limits which may be lower:

   If towed equipment does not have brakes, do not travel more than 32 km/h (20 mph) and do not tow loads more than 1.5 times the tractor weight.

   If towed equipment has brakes, do not travel more than 40 km/h (25 mph) and do not tow loads more than 4.5 times the tractor weight.

   Ensure the load does not exceed the recommended weight ratio. Add ballast to recommended maximum for tractor, lighten the load, or get a heavier towing unit. The tractor must be heavy and powerful enough with adequate braking power for the towed load. Use additional caution when towing loads under adverse surface conditions, when turning, and on inclines.

   Use caution when operating tractor at transport speeds. Reduce speed if towed load weighs more than tractor and is not equipped with brakes. (See Towed Equipment operator's manual for recommended transport speeds.)

---




9. Use additional caution when transporting towed loads under adverse surface conditions, when turning and on inclines.

10. Heavy towed or rear mounted implements may start swaying in transport. Excessive swaying will result in loss of steering control. Drive slowly and avoid quick turns of steering wheel. Refer to your implement operator's manual regarding maximum travel speed limitations.
