Adjust Rockshaft Rate-of-Drop/ Implement Lock

CAUTION: Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.

PY7079-UN-28JUN07

JD Rockshaft

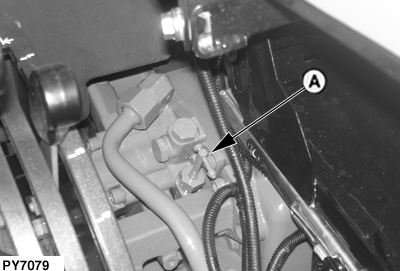

A - Rockshaft Rate-of-Drop Knob cum Implement Lock

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage.

JD Rockshaft - Turn rockshaft rate-of-drop knob (A), located under right hand rear of the seat, clockwise to slow rockshaft drop.

Turn knob counterclockwise to increase rate-of-drop.

Rate-of-drop knob is also called implement lock. When knob is fully screw in, implement will not lower down even if position control lever is fully down. Use implement lock while transporting implement.
