Attach Tipping Trailer

Hydraulic power can be extended to tipping trailor through auxiliary port (B). When preselector (A) is fully screwed-in, hydraulic oil will move to tipping trailer. Use draft control lever for lowering or raising of trailor.

NOTE: When tipping trailor is not attached to tractor, fully screw-out preselector knob, otherwise rockshaft will not function.

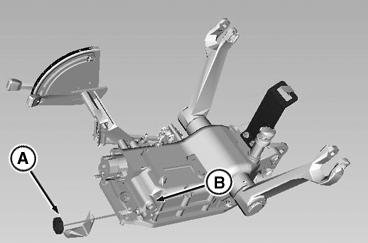

PY12214-UN-14JUN11

MITA Rockshaft

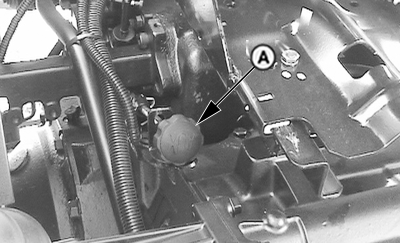

PY5281-UN-24NOV05

JD Rockshaft

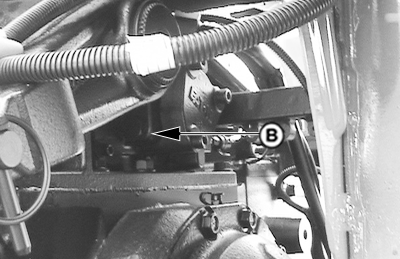

PY5282-UN-24NOV05

JD Rockshaft

A - Preselector Knob

B - Auxiliary Port
