Adjust Rockshaft Control Lever Friction- JD Rockshaft

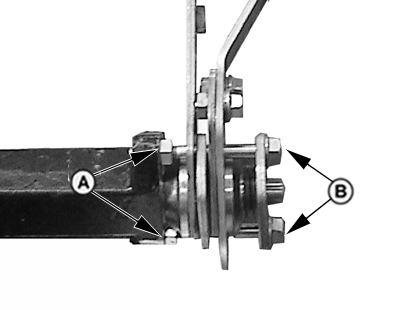

PY5210-UN-17SEP05

A - Jam Nut

B - Cap Screw

REASON:

To keep the rockshaft position and draft-sensing levers in their set positions.

PROCEDURE:

NOTE: SCV levers, right-hand fender and console removed for clarity.

1. Loosen jam nuts (A).

2. Turn adjusting cap screws (B) clockwise to increase friction, counterclockwise to decrease friction. Turn cap screws equal number of times.

3. Retighten jam nuts (A) when adjustment is complete.
