Adjust Rockshaft Control Lever Friction - MITA Rockshaft (If Equipped)

If the rockshaft position control lever or rockshft draft control lever do not stay in set position, increase lever friction by tightening the set screws (A & B) for the appropriate lever until the proper friction is obtained

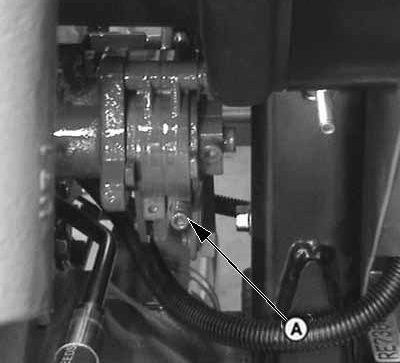

PY12216-UN-14JUN11

A- Adjustment Set Screws

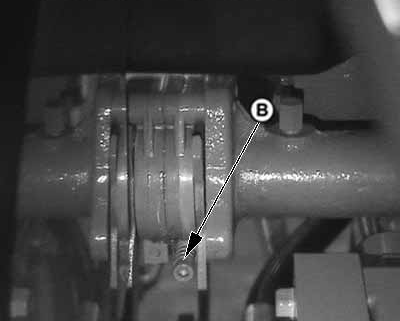

PY12217-UN-14JUN11

B- Adjustment Set Screws
