Operating Quick Raise & Lower System

Implement is raised when actuating lever (A) is pressed down

Implement is lowered when release lever (B) is pressed down

Once the rear hitch control switch is activated not operate hitch through position control lever.

Lift arm travel distance can be controlled with help of adjusting nuts on adjusting rod

Lift arm travel distance can be increased by reducing center distance between adjusting nut on adjusting rod and lift arm travel distance can be reduced by increasing center distance between adjusting rod nut on adjusting rod.

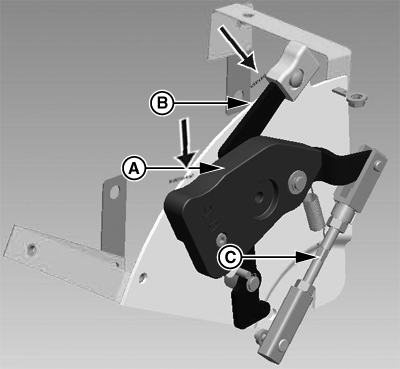

PY12220-UN-22JUN11

QRL control levers

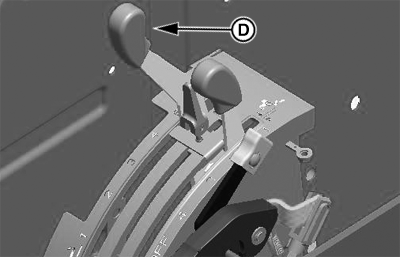

PY12219-UN-21JUN11

A - Actuating lever

B - Releasing lever

C - Adjusting rod

D - Position control lever
