Tractor Storage

PY4442-UN-12DEC05

PY4168-UN-12DEC05

PY4169-UN-12DEC05

PY4170-UN-12DEC05

.

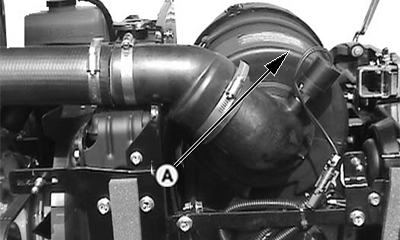

A - Air Cleaner

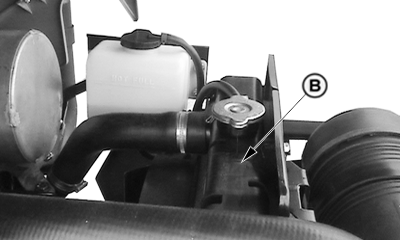

B - Cooling System

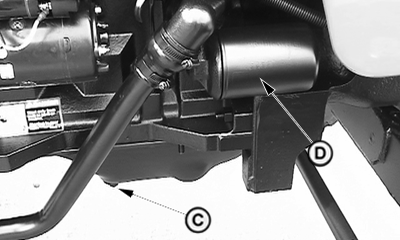

C - Engine Oil Drain Plug

D - Engine Oil Filter

E - Transmission-Hydraulic Oil Filler Cap

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration.

1. Service air cleaner (A). (See Servicing Air Cleaner in Service section.)

2. If coolant has been in tractor for two years, flush cooling system (B). (See Flush Cooling System in Service section.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

3. Change engine oil and filter (D). (See Change Engine Oil and Filter in Service—250 Hours section.)

4. Drain fuel and add back 4 L of fuel. Then add 0.4 L of corrosion inhibitor.

5. Add 0.25 L of corrosion inhibitor to transmission-hydraulic system fill port (E).

6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

7.
   PY9955-UN-24AUG10


   PY12222-UN-22JUN11

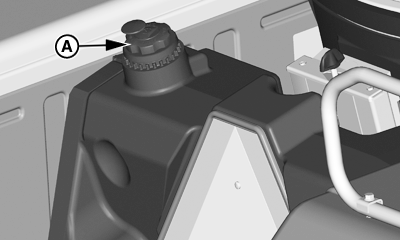

   A - Fuel Tank Filler Cap

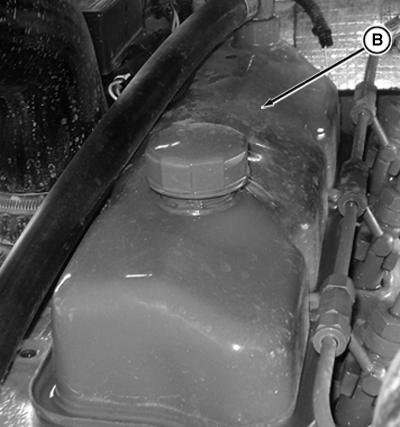

   B - Engine Oil Filler Cap

   Add 0.5 L more inhibitor to fuel tank at either filler cap (A).

---




8. Add 0.5 L inhibitor to engine crankcase at filler (B).

9. Remove air intake hose at manifold. Pour 0.1 L inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

10. Loosen alternator/fan belt after they have cooled.

11. Remove and clean battery. Store in a cool, dry place. Keep it charged.¹

12. Tie or block clutch pedal in the disengaged position.

13. Coat exposed metal surfaces, such as adjustable front axles, if extended, with grease or a corrosion inhibitor.

14.
    PY5004-UN-21MAY05


    PY12222-UN-22JUN11


    PY4142-UN-12DEC05

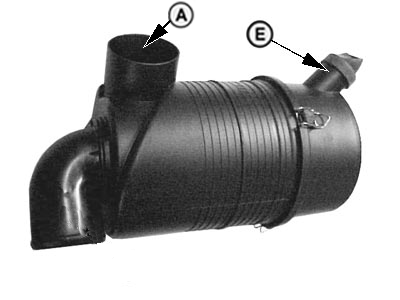

    A - Air Cleaner Inlet Hole

    B - Engine Oil Filler Cap

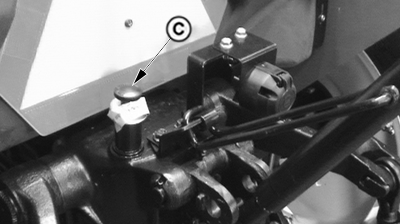

    C - Transmission-Hydraulic Oil Filler Cap

    E - Dust Unloader Valve

    Use tape to seal air inlet hole (A), dust unloader valve (E), exhaust pipe, crankcase filler (B), fuel caps, and transmission-hydraulic system filler cap (C).

---




15. Cover dash with opaque material to prevent gauges from fading.

16. Raise tires off ground. Protect them from heat and sunlight.

17. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

18. If tractor must be stored outside, cover it with a waterproof material.
