Attach Implements to 3-Point Hitch

1.
   PY5374-UN-09DEC05


   PY12224-UN-22JUN11


   PY9949-UN-24AUG10

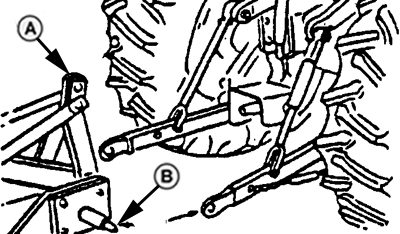

   A - Implement

   B - Implement Hitch Pins

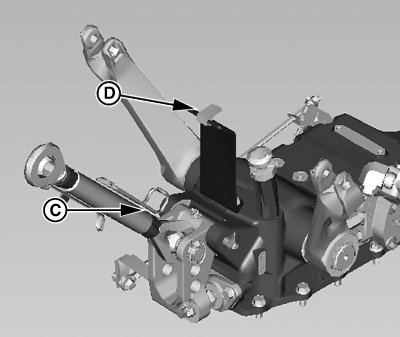

   C - Center Link Locking Clip

   D - Tab

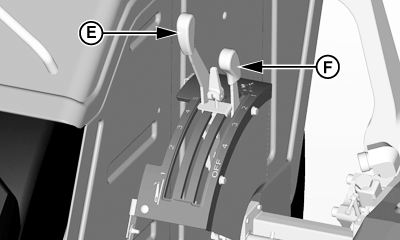

   E - Rockshaft Position Control Lever

   F - Rockshaft Draft Control Lever

   Be sure drawbar will not interfere. If necessary, move drawbar ahead, or remove it. Check for any other potential interference.

---




2. CAUTION: Prevent unexpected movement of rockshaft by placing draft sensing lever in the forward or OFF position before attaching implement to hitch.

   Back tractor up to implement (A) so hitch points (B) align. Place transmission in neutral (N), stop the engine and engage brakes BEFORE leaving the tractor seat.

3. Slip draft links over implement hitch pins (B), and retain with quick-lock pins.

   NOTE: Locking pins can be stored on draft links (through holes in sway chain ears) when not in use.

4. To remove center-link from transport hook, lift center link locking clip (C), and rotate tab (D) to rear of center link clip.

5. Attach center link to implement top mast.

6. Adjust center link and lift links as necessary. (See Level the Hitch in this section.)

7. CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-Point Hitch, check full range of operation for interference, binding or PTO separation.

   Using rockshaft position control lever (E), lower and raise implement slowly and check for any point of interference.
