Operate Tractor PTO

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until engine speed is sufficient to start PTO implement. Engine speed must be less than 2200 rpm (B).


   PY4485-UN-16FEB06

   Hand Throttle Lever

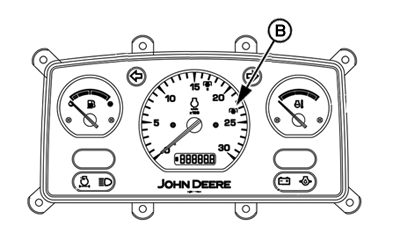

   PY9951-UN-24AUG10

   Without PTO Indicator

   A - Hand Throttle Lever

   B - 540 Operation Speed

---




2. Move control lever (A) forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

3. Increase engine speed to rated PTO speed of 2200 rpm for 540 operation.

4. In dual clutch tractor move control lever (C) forward to engage PTO. In case of single clutch tractor, depress clutch and move control lever (A) to engage PTO

5. CAUTION: Turn key OFF and pull Fuel Shut-off Knob to stop engine, set brakes and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

   Pull control lever back to disengage PTO.

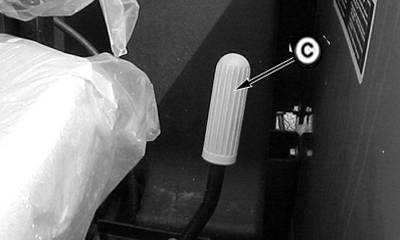

   PY5382-UN-10DEC05

   Dual Clutch

   C - PTO Control Lever

---
