Adjust Toe-in (MFWD Tractor)

NOTE: This procedure is for toe-in adjustment off the vehicle. The toe-in adjustment must be performed again on the vehicle.

1. Jack up front axle so tires are off floor
2. Rotate tire by hand and scribe a line near the center of each of the front tires. NOTE: One of the tie rod ends and jam nut has left-hand threads

3. Measure and record the distance between the lines at the front and the rear of the tire at about axle height. The front measurement should be less than the rear measurement.

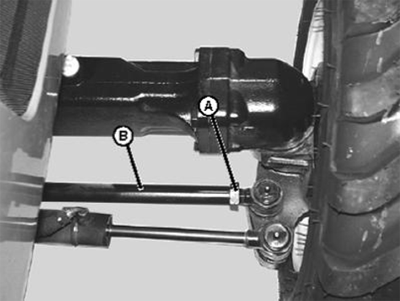

4. If measurement is not correct, loosen jam nuts (A) on both ends of tie rod and turn the tie rod (B) using a wrench to increase or decrease the amount of toe until the measured dimension is 0–0.125 in.[0–3 mm].
5. Apply Loctite 262 and tighten the jam nuts (A) to 173–192 lbs. ft. [235–260 N•m].

PY12247-UN-26JUL11

.

Item	Measurement	Specification
MFWD Tie Rod Jam Nuts—	Torque	173–192 lbs. ft. [235–260 N•m]
