Use Liquid Weight

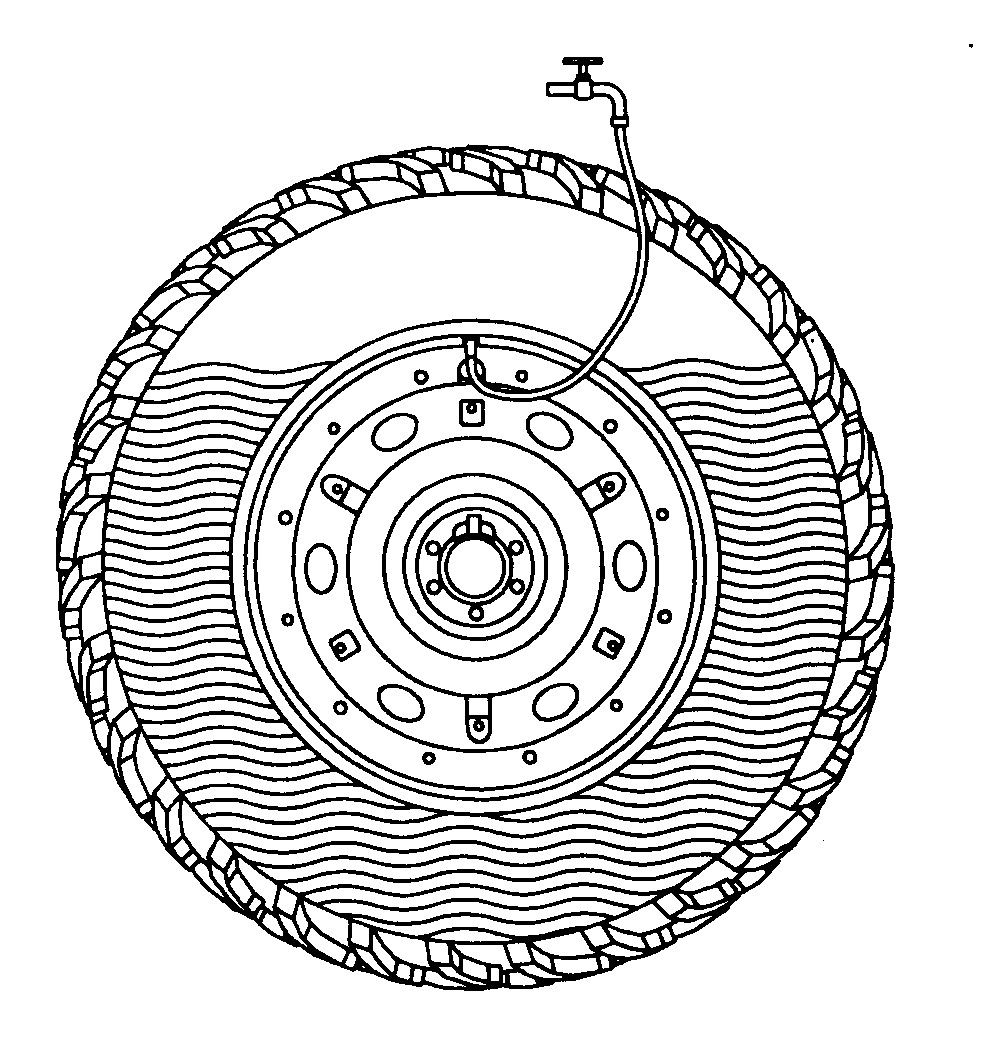

RW25003-UN-07JUL93

CAUTION: Installing liquid ballast requires special equipment and training. Have the job done by your John Deere dealer or a tyre service store.

IMPORTANT: NEVER fill tyre to more than 75% full. More solution would leave too little air space to absorb shocks. Damage to tyre could occur.

A solution of water and calcium chloride provides safe, economical ballast. Used properly, it will not damage tires, tubes, or rims.

Use calcium chloride to prevent water from freezing. A mixture of 0.6 kg per liter (5.0 lb of calcium chloride per gal) will not freeze solid above —45°C (—53°F).

Charts on this page show how much each tyre size holds if filled to 75 percent full.

LIQUID WEIGHT FOR FRONT TYRES With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
Tyre Size	Liquid Weight per tyre kg (lb)—75% Full
6.00-16	30 (67)
7.5-16	40 (107)
8-18	30 (67)

LIQUID WEIGHT FOR REAR TYRES With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
Tyre Size	Liquid weight per Tyre kg (lb)—75% Full
12.4-28	216 (478)
13.6-28	237 (524)
14.9-28	339 (747)
