Tighten Bolts— Front Axle

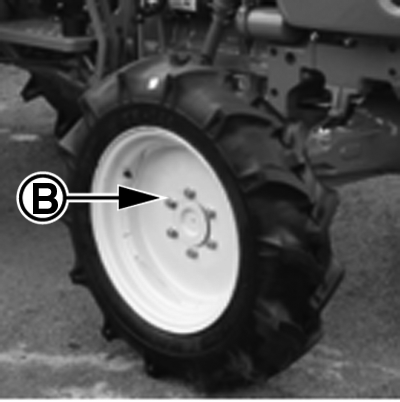

PY12251
PY12251-UN-01SEP11

B - Disk-to-Flange

Tighten bolts in the following locations to specifications:

ItemMeasurementSpecification
Front Axle—Disk-to-Flange BoltsTorque210 Nm (130 lb-ft)

AK50421,000016D-19-20111019
