Adjust PTO Clutch Operating Rod

PY5912-UN-11JUL06

LV4082-UN-02NOV99

PY5019-UN-21MAY05

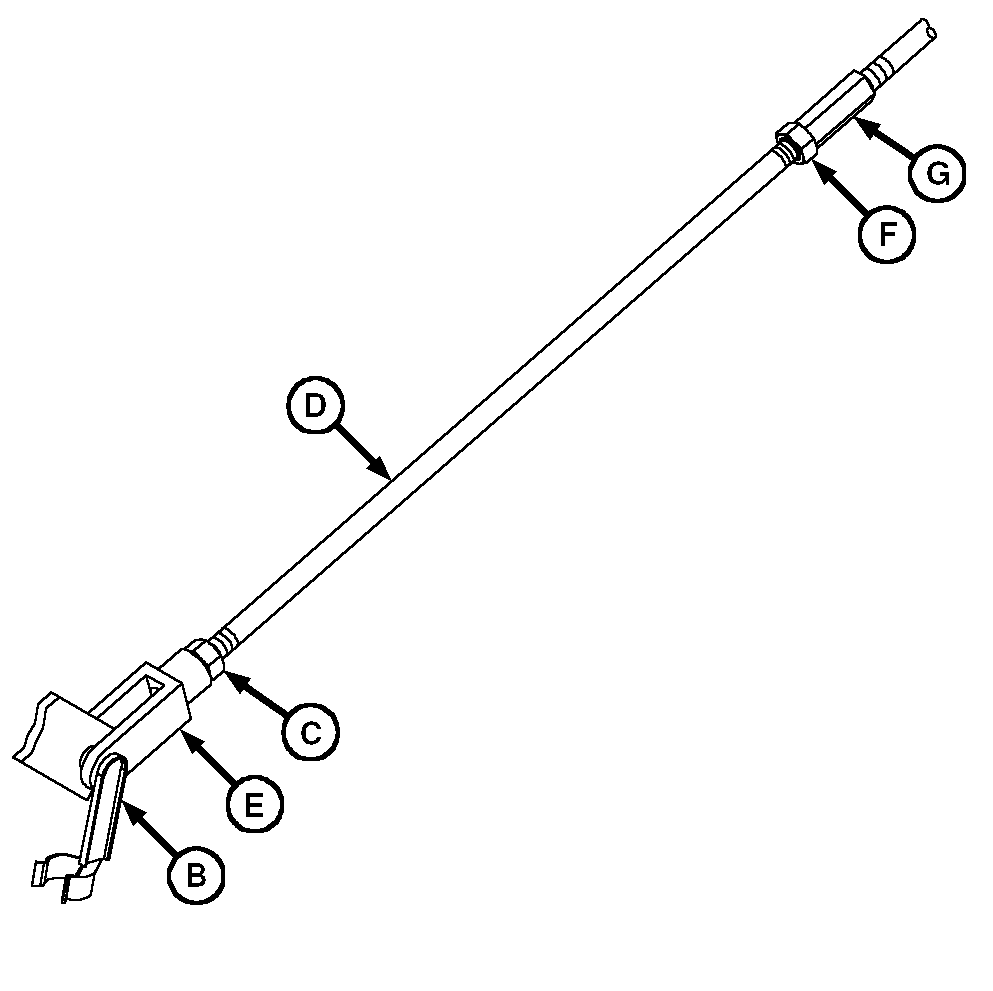

A - PTO Clutch Lever

B - Clip Pin

C - Jam Nut

D - Arm

E - Clevis

F - Jam Nut

G - Turnbuckle

1. Move PTO lever (A) to rearward (disengaged) position.

2. Remove clip pin (B) from forward end of PTO clutch rod.

3. Check for equal thread engagement at turnbuckle (G). Loosen jam nuts (F) and (C). Turn rod (D) until threads on each side of turnbuckle are equal. Tighten jam nut (F).

4. Loosen jam nut (C) from rear of front clevis (E).

5. Adjust length of arm (D) so the clip pin (B) can be inserted with the rod pulled forward and the arm pulled rearward to eliminate free play. Lengthen rod by turn of the clevis to provide PTO clutch lever free play and PTO clutch rod travel in fully engaged position to specification.

   Item	Measurement	Specification
   PTO Clutch Lever	Free Play	15 mm
   PTO Clutch Rod (In Fully Engaged Position)	Travel	14 mm -16 mm

6. NOTE: Adjust turnbuckle (G) if you cannot make proper adjustment with clevis.

   Reinstall clip pin (B) in clevis (E) and arm (D).

7. Tighten jam nut (C) at clevis.
