Change Engine Oil and Filter

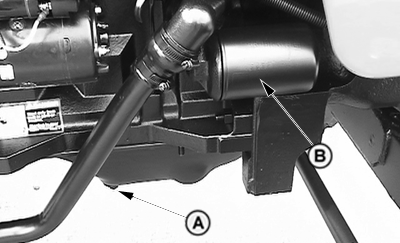

PY4147-UN-26AUG04

A - Engine Oil Drain Plug

B - Engine Oil Filter

1. Run engine to heat oil. Turn engine off.

2. Remove oil drain plug (A) and drain oil.

3. Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

4. Install drain plug.

5. Add seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)

   Item	Measurement	Specification
   Engine Crankcase Oil	Capacity	8.5 L(2WD) / 6.5 L(4WD)

   NOTE: In Break-in-period, change the oil in first 100 hours.
