Foreword

READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual and safety signs on your machine may also be available in other languages (see your John Deere dealer to order).

THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine.

MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch wrench.

RIGHT-HAND AND LEFT-HAND sides are determined by facing the direction of forward travel.

WRITE TRACTOR SERIAL (CHASSIS) NUMBER in the Specification or Identification Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.

SETTING FUEL DELIVERY BEYOND PUBLISHED factory specifications or otherwise overpowering will result in loss of warranty protection for this machine.

BEFORE DELIVERING THIS MACHINE, your dealer performed a predelivery inspection. After operating for the first 100 hours, schedule an after-sale inspection with your dealer to ensure best performance.

THIS TRACTOR IS DESIGNED SOLELY for use in customary agricultural or similar operations ("INTENDED USE"). Use in any other way is considered as contrary to the intended use. The manufacturer accepts no liability for damage or injury resulting from this misuse, and these risks must be borne solely by the user. Compliance with and strict adherence to the conditions of operation, service and repair as specified by the manufacturer also constitute essential elements for the intended use.

THIS TRACTOR SHOULD BE OPERATED, serviced and repaired only by persons familiar with all its particular characteristics and acquainted with the relevant safety rules (accident prevention). The accident prevention regulations, all other generally recognized regulations on safety and occupational medicine and the road traffic regulations must be observed at all times. Any arbitrary modifications carried out on this tractor will relieve the manufacturer of all liability for any resulting damage or injury.

NOTE: Tractor shown may have optional equipment.

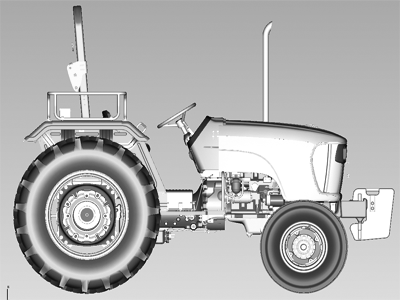

PY14048-UN-05APR12

John Deere 5038D Tractor

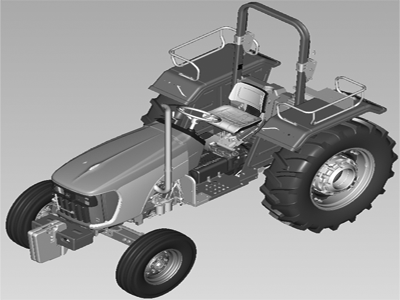

PY14050-UN-05APR12

John Deere 5042D Tractor

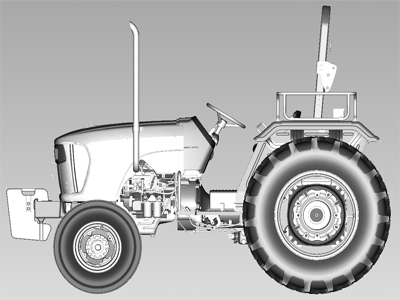

PY14049-UN-05APR12

John Deere 5045D Tractor

PY12274-UN-11NOV11

John Deere 5047D Tractor

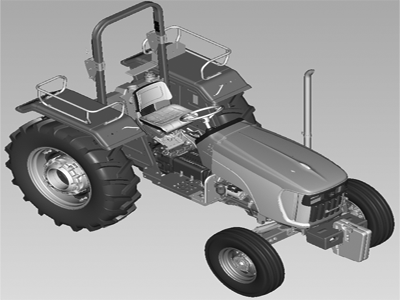

PY14051-UN-05APR12

John Deere 5050D Tractor

Applicable Models

• 5038D V2, 5038D PS DC, 5038D MS SC, 5038D MS DC & 5038D PS DC VT
• 5042D PS, 5042D PS DC, 5042D MS SC, 5042D PS DC VT & 5042D MS DC VT
• 5045D SS, 5045D PS SC, 5045D MS SC, 5045D PS DC VT, 5045D MS DC VT & 5045D 4WD
• 5050D SS, 5050D PS SC, 5050D MS SC, 5050D PS DC VT, 5050D MS DC VT & 5050D Version2.
