Use Headlights

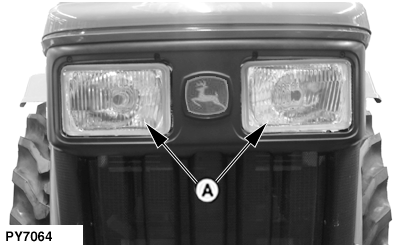

PY7064-UN-28JUN07

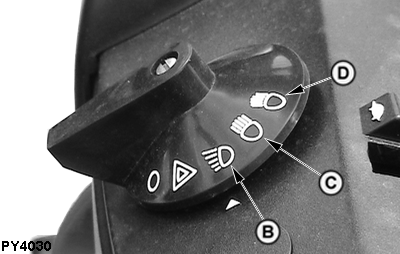

PY4030-UN-06JUN06

A - Headlights

B - Dim Headlights, Tail Lights, and Warning Light Position

C - Bright Headlights, Tail Lights and Warning Lights Position

D - High Beamlight

Dual-beam headlights (A) are switched on by either “Dim Headlight” (B), “Bright Headlight” (C) or “High Beamlight” (D), light switch positions.

Always dim lights before meeting another vehicle.

Keep headlights adjusted properly, (see Adjusting Headlights in Service section).
