Before Starting the Engine

TS220
TS220-UN-23AUG88

PY4953
PY4953-UN-27MAY05

Dual Clutch Tractor

PY13078
PY13078-UN-16DEC11

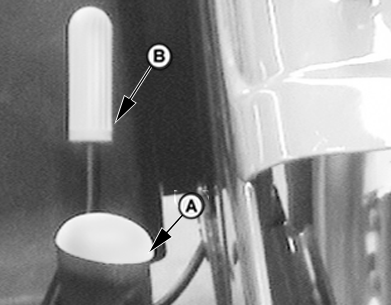

A - Range Shift Lever

B - PTO Lever

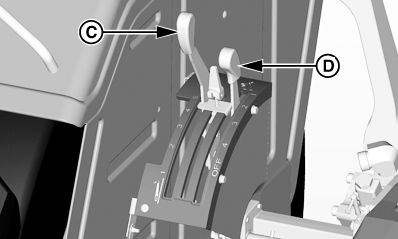

C - Rockshaft Position Control Lever

D - Rockshaft Draft Control Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

  1. Check fuel gauge to be sure tractor has plenty of fuel.

  2. Place range shift lever (A) in neutral (N) position. Starter will not operate if range shift lever is not in this position.

  3. Place rockshaft control levers (C and D) in lowered position.

  4. Check indicator lights. Indicators should illuminate when key switch is turned to the “ON” position.

    If any indicator does not function properly, see your John Deere dealer.

DP79986,0000081-19-20111219
