Change Engine Speeds

PY4111
PY4111-UN-21AUG04

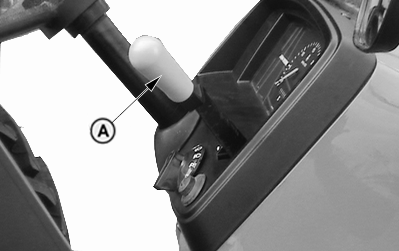

Hand Throttle

PY9940
PY9940-UN-24AUG10

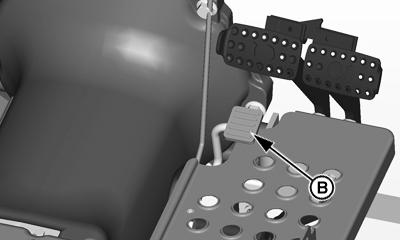

Foot Throttle

A - Hand Throttle

B - Foot Throttle

To increase speed, push hand throttle (A) forward.

To temporarily increase engine speed above hand throttle setting, depress foot throttle (B).

DP79986,0000088-19-20100824
