Stopping Tractor

PY6080-UN-06AUG06

PY4911-UN-14APR05

PY13078-UN-16DEC11

PY6086-UN-06AUG06

A - Range Shift Lever

B - Hand Throttle Lever

C - Rockshaft Position Control Lever

D - Rockshaft Draft Control Lever

E - Fuel Shut Off Knob

1. CAUTION: Always place the range shift lever in neutral (N) and set brakes before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.

   Stop the tractor and place range shift lever (A) in neutral.

2. Apply brakes.

3. Lower all equipment to ground using rockshaft position control lever (D) and rockshaft draft control lever (C),

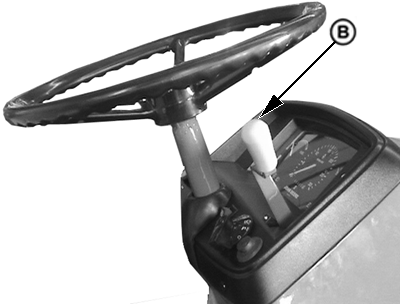

4. Pull hand throttle (B) down to slow idle position. Allow engine to idle for one to two minutes.

   IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

5. CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

   Turn key switch to OFF position.

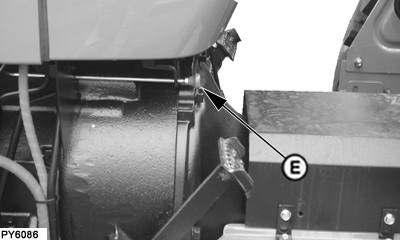

6. Pull manual fuel shut-off knob (E) (at lower left side of control support) rearward and hold until engine has completely stopped.
