Set Position Control Lever Stop

  1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

    PY9947
    PY9947-UN-24AUG10

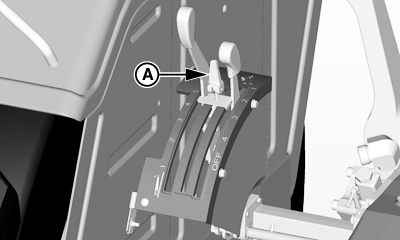

    A - Lever Stop

    Operate implement for a few minutes to determine proper depth or height.


  2. Loosen lever stop (A), and slide against position control lever. Lock stop in position by turning in a clockwise direction. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.

DP79986,0000094-19-20100823
