Adjust Hitch Side Sway

PY4970-UN-10DEC05

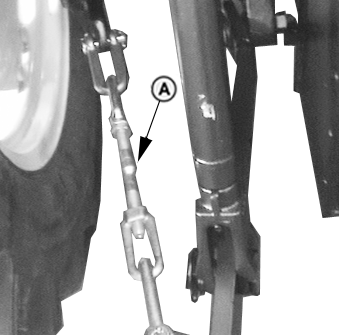

A - Threaded Link

NOTE: Check implement operator's manual for instruction on whether to allow side sway.

NOTE: Use spring or rubber strap to keep draft links out of rear tyres when draft links are not attached to implement.

Implement side sway should be adjusted when the rockshaft is raised for transport by loosening the jam nut on the threaded link (A) and turning the center rod to increase or decrease the length of chain. Tighten jam nut again when adjusted.
