Warm Hydraulic System Oil

PY6097
PY6097-UN-06AUG06

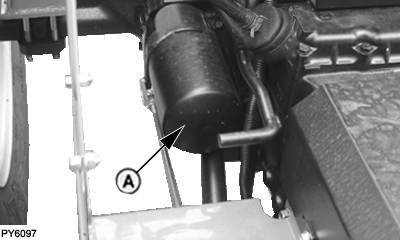

Right Side of Transmission

A - Hydraulic Oil Filter

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow as easily through the hydraulic system filter (A).

Steering may be slow until system warms up.

Hydraulic system will function normally when oil warms up.

  1. IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed two to three minutes warm-up time with steering wheel held in full left or full right turn position.

    PY9942
    PY9942-UN-24AUG10

    Depress clutch pedal, start engine and idle at about 1000 rpm.


  2. Turn and hold steering wheel in full left or right turn.

DP79986,000009F-19-20111219
