Tread Settings—Multi-Position Rear Wheels

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of points in the direction of forward rotation.

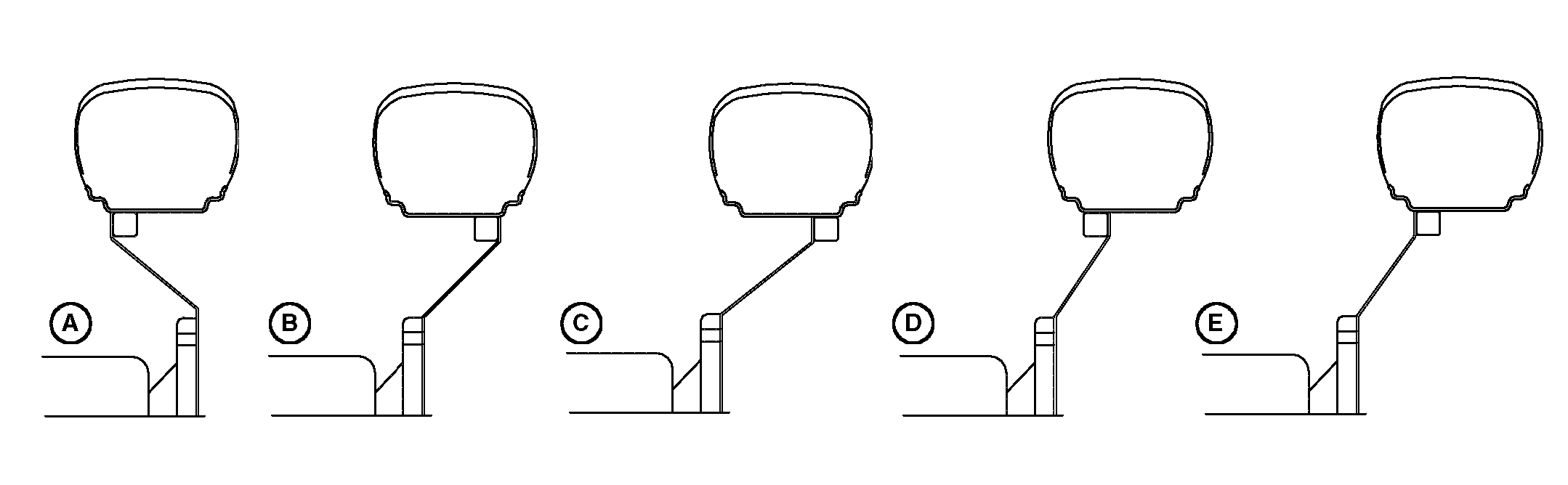

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams on the facing page.

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

IMPORTANT: After setting wheel spacing, tighten rim-to-disk and disk-to-flange bolts. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
Multi-Position Rear Wheels Rim-to-Disk (Steel Disk)	Torque	245 Nm (180 lb-ft)
Multi-Position Rear Wheels Disk-to-Flange (Steel Disk)	Torque	175 Nm (130 lb-ft)

NOTE: Tread settings are measured at bottom of centerline.

STEEL DISKS REAR TREAD WIDTH Centerline-to-Centerline
Diagram	Tire Sizes
	14.9-28 13.6-28 12.4-28
A	1417 mm (55.8 in.)
B	1513 mm (59.6 in.)
C	1617 mm (63.7 in.)
D	1716 mm (67.6 in.)
E	1820 mm (71.7 in.)

IN227-UN-24MAY00
