Check Engine Idle Speeds

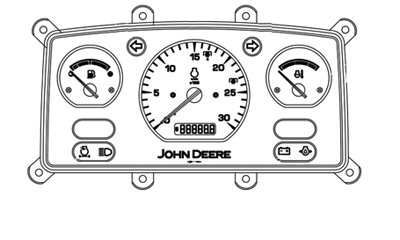

PY9942-UN-24AUG10

Slow idle speed is 850 +25/-50 rpm.

With no load, fast idle speed is 2500 +50/-25 rpm.

If idle speeds are not correct, see your John Deere dealer.

Item	Measurement	Specification
Engine—Slow Idle	Speed	850 +25/-50 rpm
Engine—Fast Idle (with No Load)	Speed	2500 +50/-25 rpm
