Locate Fuses

PY5164-UN-23AUG05

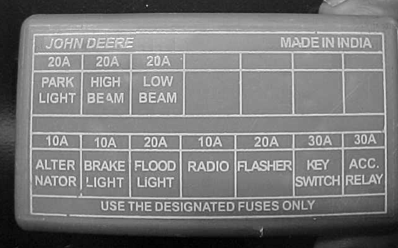

A - Fuse Panel

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

To access fuse panel (A), remove four cap screws to lower fuse panel cover.

Fuse Rating	Color
10 Amp	Red
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.
