Light Switch Positions

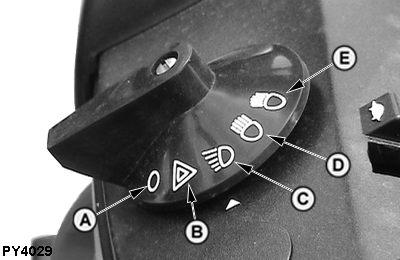

PY4029-UN-06JUN06

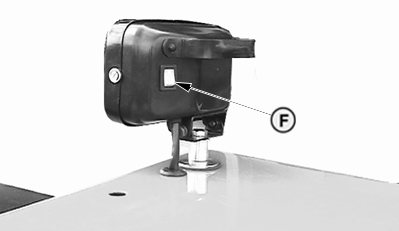

PY4107-UN-21AUG04

A - Lights Off

B - Warning Lights Position

C - Dim Headlights, Tail Lights, and Warning Light Position

D - Bright Headlights, Tail Lights and Warning Lights Position

E - High Beamlight

F - Flood Light Switch

Tractor light switch has five positions:

A—Turns off all lights.

B—Turns on warning lights only. Use for parking the vehicle

C—Turns on dim headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles.

D—Turns on bright headlights, tail lights, and warning lights. For highway driving during night time

E—Turns on high beamlight.

F— Switch on flood lamp (plough lamp). For field use only. Do not use on roads. Flood light might blind or confuse other drivers
