Replace Tail Light and Warning Light Bulbs

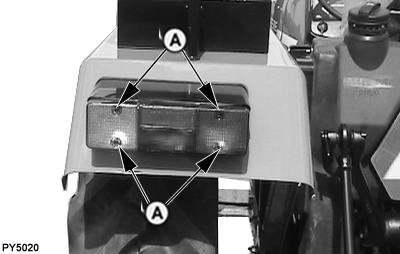

PY5020-UN-12JUN06

A - Cap Screws (4 used)

1. Remove screws (A).

2. Remove lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble light.
