Tighten Bolt Adjustable Front Axle––If Equipped
PY5021-UN-21MAY05
PY5844-UN-21JUN06
A - Axle-to-Knee

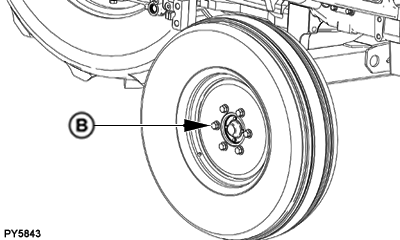

B - Disk-to-Flange
Tighten bolts in the following locations to specifications:
| Item | Measurement | Specification |
| Adjustable Front Axle-to-Knee Bolts | Torque | 480 N•m |
| Adjustable Front Axle Disk-to-Flange Bolts | Torque | 210 N•m |
|
NR25796,0000683-19-20070115 |
