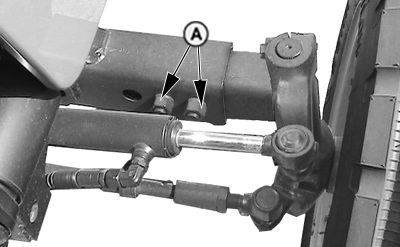

Tread Settings—Adjustable Front Axle––If Equipped
PY5021-UN-21MAY05
LV1515-UN-05MAR96

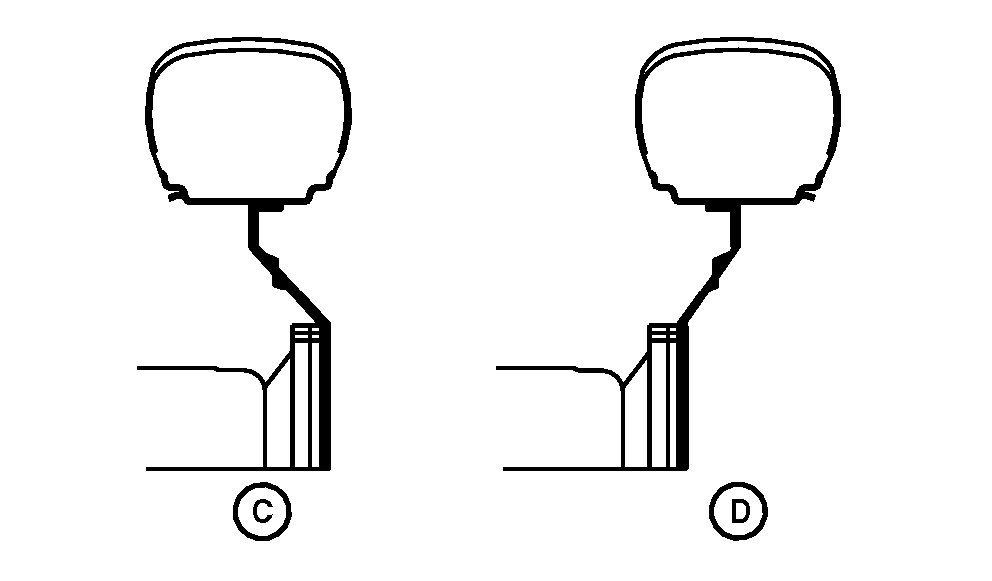

Front rims are offset. With some tires, this provides two tread spacings, at each axle setting.
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Positionª For 2 WD |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.5-16 |
1449 mm (57.0 in.) |
1549 (61.0 in.) |
1649 (64.9 in.) |
1749 (68.9 in) |
1849 (72.8 in.) |
1949 (76.7 in.) |
|
6.0-16 |
1435 mm (56.5 in.) |
1535 mm (60.4 in.) |
1635 mm (64.4 in.) |
1735 mm (68.3 in.) |
1835 mm (72.2 in.) |
1935 mm (76.2 in.) |
|
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. |
||||||
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Positionª |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
7.5-16 |
1583 (62.3 in.) |
1683 mm (66.3 in.) |
1783 mm (70.2 in.) |
1883 mm (74.1 in.) |
1983 mm (78.1 in.) |
2083 mm (82.0 in.) |
|
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. |
||||||
|
