Check MFWD Axle Oil Level

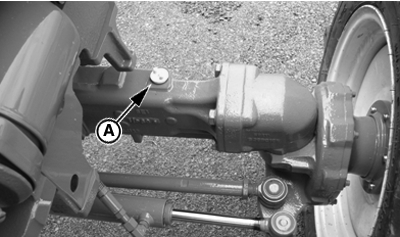

PY12252-UN-01SEP11

Oil Fill Plug DANA

A - MFWD Oil Filler Cap/Dipstick

1. Park tractor on level surface.
2. Remove plug (A) to check oil level in axle housing with help of dipstick attached to the plug(A).
3. If level is low, add John Deere HYGARD® Gear Lubricant or its equivalent. (See Fuels, Lubricants and Coolant section.)

NOTE: HYGARD is a registered trademark of Deere & Company
