Inspect Tires and Loose Hardwares

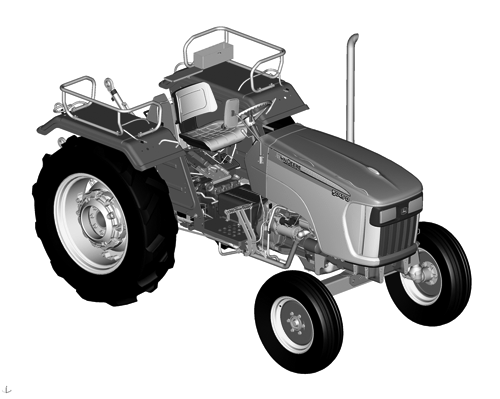

PY9958-UN-24AUG10

NOTE: Tractor shown may have optional equipment.

Inspect all tyres and check inflation pressure. Also check tractor for any loose harware

Item	Measurement	Specification
Ballast Weights Retaining Bolts	Torque	230 N˙m (170 lb-ft)
Front Axle Disk-to-Flange Bolts	Torque	210 N˙m (155 lb-ft)
Rear Axle Rim-to-Disk Bolts	Torque	245 N˙m (180 lb-ft)
Rear Axle Disk-to-Flange Bolts (5038D, 5042D, 5045D,5047D, 5050D)	Torque	550 N˙m (406 lb-ft)
