Seven-Terminal Outlet
PY4132-UN-09DEC05
PY5526-UN-11JUL06

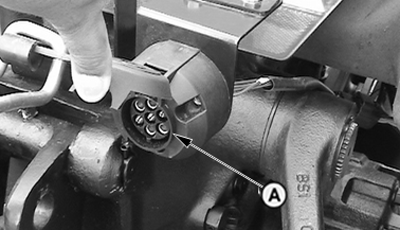

A - Seven-Terminal Outlet
Outlet (A) is used to connect lights, turn signals and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.NOTE: Matching plug is available through your John Deere dealer.
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Ground |
Black |
|
2 |
Flood Lamp |
Purple |
|
3 |
Left Turn |
Dark Green |
|
4 |
Accessory |
Red |
|
5 |
Right Turn |
Dark Green |
|
6 |
Tail Lamp |
Gray |
|
7 |
Accessory |
Red |
|
