Check Coolant Level

TS281
TS281-UN-23AUG88

PY4121
PY4121-UN-07DEC05

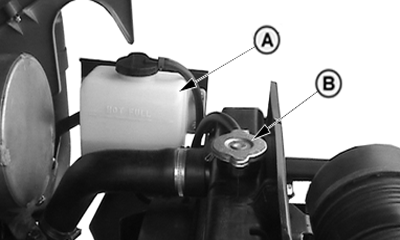

A - Coolant Recovery Tank

B - Radiator Cap

CAUTION: . Only remove radiator cap (B) when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

IMPORTANT: Check the coolant level when engine is cold.

  1. Check coolant level in coolant recovery tank (A).

  2. Coolant level shall be upto to “Cold Mark”. If it is below “Cold Mark”, add coolant to that mark only. (See Fuels, Lubricants and Coolant section.)

PY80265,05GO912-19-20060704
