Change Transmission-Hydraulic Oil and Filter

PY4417
PY4417-UN-31DEC04

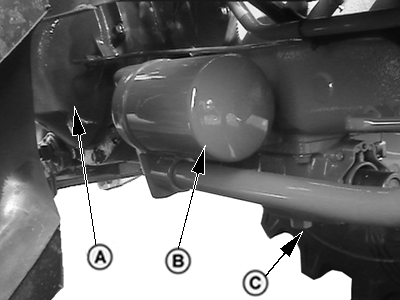

A - Axle Housing

B - Transmission Oil Filter

C - Transmission Case Drain Plug

  1. Lower rockshaft to remove trapped oil.

  2. Remove drain plug (C) from transmission case and drain oil. Dispose of waste oil properly.

  3. Replace filter (B) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

  4. PY4143
    PY4143-UN-12JUN06

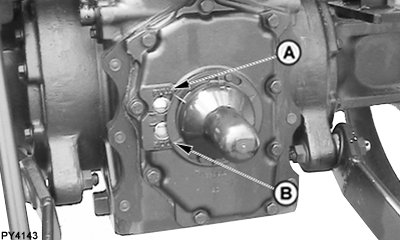

    A - Full Level Mark

    B - Add Level Mark

    Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

    ItemMeasurementSpecification
    Transmission Oil (Rear tyre size: 12.4 X 28 or 13.6 X 28) Capacity33 L
    Transmission Oil (Rear tyre Size 14.9 X 28Capacity34 L


  5. Check oil level at sight glass after filling. Make sure oil level is to full level mark (A). Check again after operating for five minutes. Add oil if necessary.

PY80265,05GO935-19-20060612
