Adjust Throttle Friction

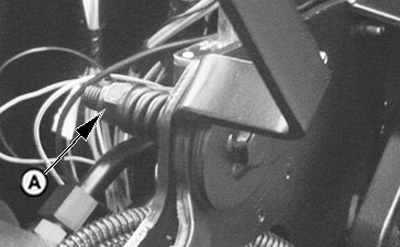

PY4072-UN-24JAN05

A - Throttle Lever Lock Nut

When throttle linkage becomes loose and does not stay in set position, adjust as follows:

NOTE: Instrument and side panels removed for illustration purposes. Throttle lever lock nut can be accessed by lowering key switch cover.

1. Adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.
