Fuel System Components

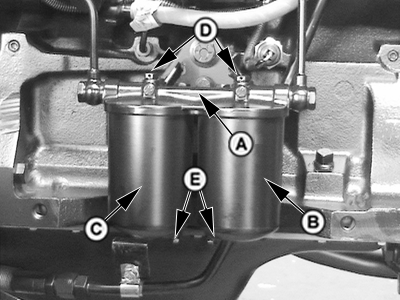

PY4895-UN-11APR05

PY4887-UN-19APR05

A - Mico Fuel filter Assembly

B - Primary Filter

C - Secondary filter

D - Bleeding Screws-2 nos

E - Sediment Drain Screws-2 nos

F - Fuel Injection Lines

G - Fuel Line to Pump

H - Fuel return line

I - Hand Priming Pump

J - Lubrication

K - Acclerator

L - Fuel Shut Off Lever
