Clean Grille, Screens and Radiator

TS266-UN-23AUG88

PY7321-UN-10JUL07

PY8206-UN-22FEB08

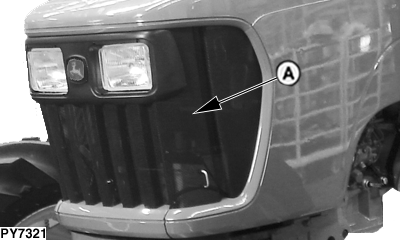

A - Grille

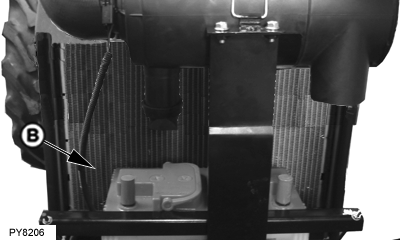

B - Radiator

1. Whenever trash builds up on front grille (A), stop engine and brush clean.

2. CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

   Raise hood and see if trash has built up on radiator (B). If so, remove it using a brush or compressed air.

3. If a more thorough cleaning is necessary, clean radiator from behind with compressed air or water. Straighten any bent fins.
