Use Flood Lamp

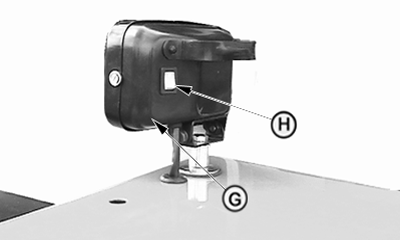

Flood lamp (G) is switched on by flood light switch (H).

PY5365-UN-20FEB06

PY4150-UN-20FEB06

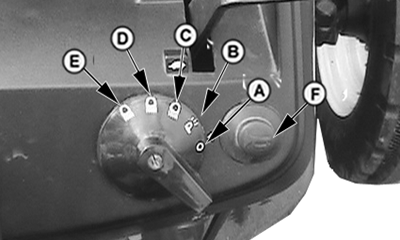

A - Lights Off

B - Warning Lights Position

C - Dim Headlights, Tail Lights and Warning Light Position

D - Bright Headlights, Tail Lights and Warning Lights Position

E - High Beamlight

F - Horn

G - Flood Lamp

H - Flood Light switch

CAUTION: When operating on a road, move light switch to either “Bright or Dim Head Lamp” positions Never use flood lamp when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.
