Select Seat Position

Standard Seat

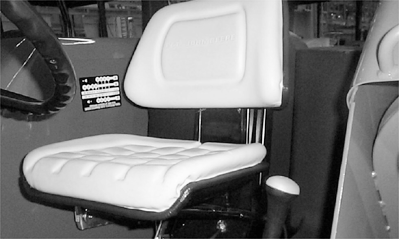

PY1047-UN-25JUN01

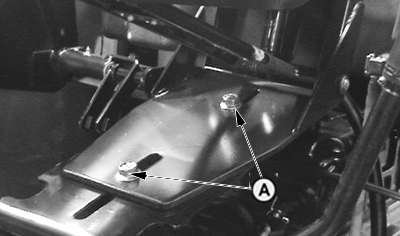

PY4126-UN-25AUG04

A - Cap Screws

Loosen two cap screws (A) and move seat forward or backward depending on operator's requirement. After getting right position, tighten both cap screws.

Deluxe Seat

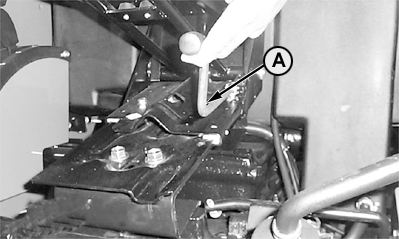

PY1032-UN-24JUN01

A - Seat Adjustment Lever

Seat can be moved forward or backward depending on operator's requirement. To move seat on either side, just lift lever (A) and push the seat.
