Check Transmission-Hydraulic System Oil Level

1.

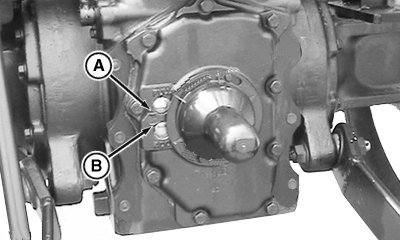

   PY16778-UN-07JAN13

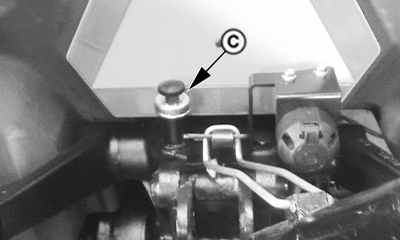

   PY4971-UN-10DEC05

   A - Hydraulic Oil Full Level Mark

   B - Hydraulic Oil Low Level Mark

   C - Hydraulic Oil Filler Port

   Park on level ground. Put range shift lever in neutral (N), set brakes and turn engine OFF.

---




2. Wait a minimum of five minutes for oil to settle.

3. Check level at sight glass. Make sure the oil level should be full in level mark (B) as shown.

   NOTE: As long as Lower window is full, there is no requirement of oil top up. Upper window is the full level, beyond that oil is not required to be filled.

4. Add oil to filler port (C) if lower glass window (B) shows an empty space. (See Anti-Chatter Transmission/Hydraulic Oil in Fuels, Lubricants and Coolant section.)
