Lubricate Steering Spindles (Adjustable Front Axle—If Equipped)

PY4068-UN-06JUN06

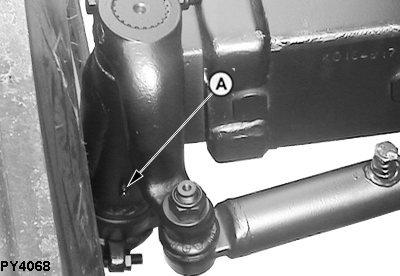

Adjustable Front Axle Shown

On tractors equipped with adjustable front axle, apply several shots of general purpose grease (See Fuels, Lubricants and Coolant section) to steering spindle fitting (A).
