Check Hoses and Hose Clamps for Tightness

PY4115
PY4115-UN-21AUG04

PY4116
PY4116-UN-21AUG04

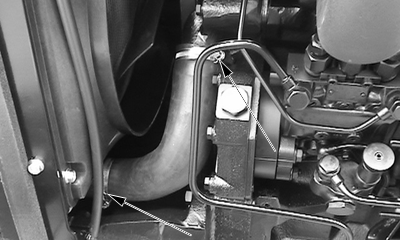

PY4156
PY4156-UN-28AUG04

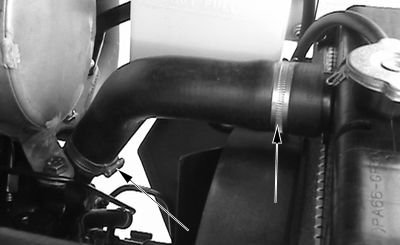

Radiator Lower Hose

PY4155
PY4155-UN-28AUG04

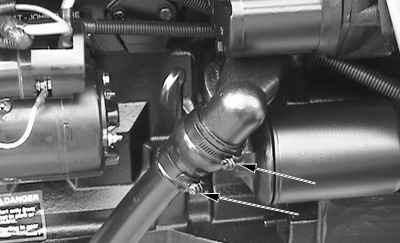

Radiator Upper Hose

PY4154
PY4154-UN-27AUG04

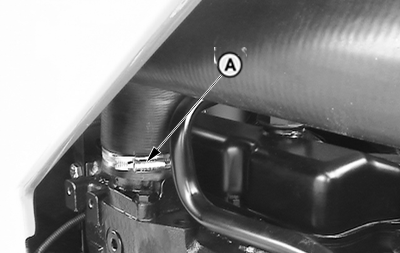

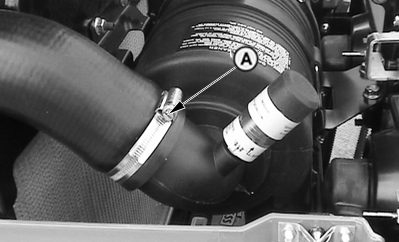

A - Hose Clip

Check the following systems hose clamps for tightness:

  • Air Cleaner to engine intake
  • Engine Cooling
  • Hydraulics
  • Fuel

Check all hoses for cracks which could cause leaks or possible failure. Replace as necessary.

SA61034,00002C8-19-20080317
