Start the Engine

TS177-UN-11JAN89

Machinery Runaway

PY4497-UN-13JAN05

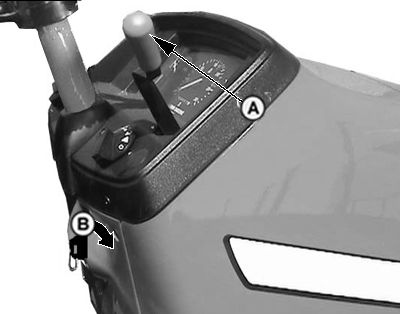

Hand Throttle and Key Switch

PY6082-UN-06AUG06

Fuel Shut-off Knob

A - Hand Throttle

B - Key Switch On

C - Fuel Shut Off Knob

1. Push hand throttle (A) forward off idle position (approximately 1/3 of full throttle). Engine may not start with throttle pulled completely down.

2. Make sure fuel shut-off knob (C) is pushed in.

3. CAUTION: Avoid possible injury or death from a machine runaway.

   Do not start engine by shorting across starter terminals. Machine will start in gear and move if normal circuitry is bypassed.

   Start engine only from operator's seat with transmission in NEUTRAL.

   NEVER start engine while standing on ground.

   IMPORTANT: DO NOT run a cold engine at full throttle.

   Depress clutch pedal and turn key switch fully clockwise (B) to engage starter. Release key when engine starts. If key is released before engine starts, wait until starter and engine stop turning before trying again.

   IMPORTANT: DO NOT operate starter more than 20 seconds at a time. If engine does not start, wait at least two minutes for the starter motor to cool before trying again. If engine does not start in four attempts, refer to “Troubleshooting” section.
